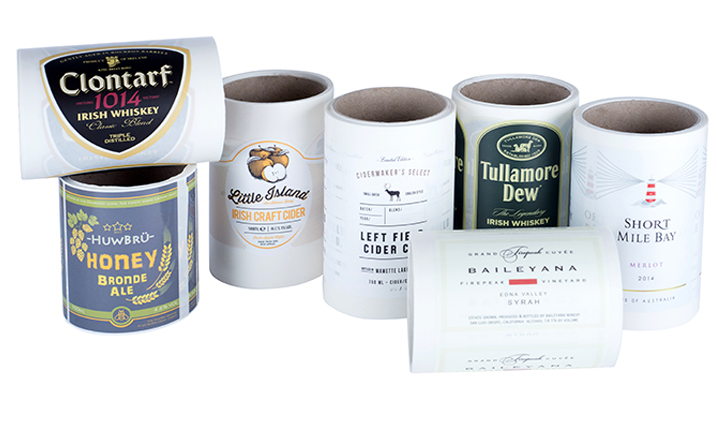

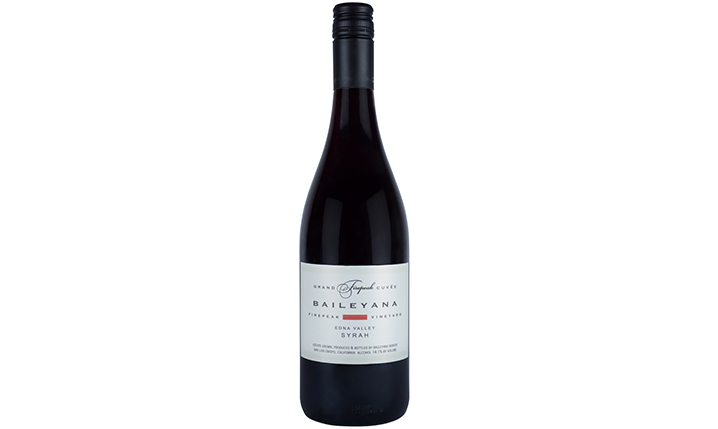

Wine Labels

Preferred file types are high resolution flattened PDF or EPS files. If you are designing artwork in a vector program such as illustrator please ensure all fonts are converted to outlines or attach all fonts with your order.

High resolution AI, PSD or JPEG files are also accepted.

For a more in-depth guide about file types click here

All files supplied must be based in the CMYK colour mode, with no tints lower than 5%.

For a more in-depth guide about colour click here

To avoid any issues, make the fonts part of your original document through embedding, flattening or converting them to curves in the chosen design program.

For a more in-depth guide about font click here

All artwork supplied to us for print must have at least 3mm bleed and 3mm inner safe area on all trimmed edges. Please do NOT add crop marks.

For a more in-depth guide about bleed click here

Images need to have a minimum resolution of 300dpi. If artwork is generated at a lower resolution, then the quality of the final printed job will be affected.

For a more in-depth guide about resolution click here

The toners we use to print on clear materials are slightly transparent, this means that for the parts that you require to be opaque or to add full colour images we have to create a white base layer on the artwork behind the colour or image, this is achieved by creating a separate layer on your artwork named “white” and anywhere our press finds this colour it will print white toner (beneath the CMYK artwork, beneath images or on it's own).

We can set up your artwork in our design studio, please describe which areas you require to be white or opaque in the notes box on the upload artwork page.

Please be aware that if additional set up is required by our design studio this may delay turnaround time.

For an in-depth guide of how to setup labels with white elements please click here

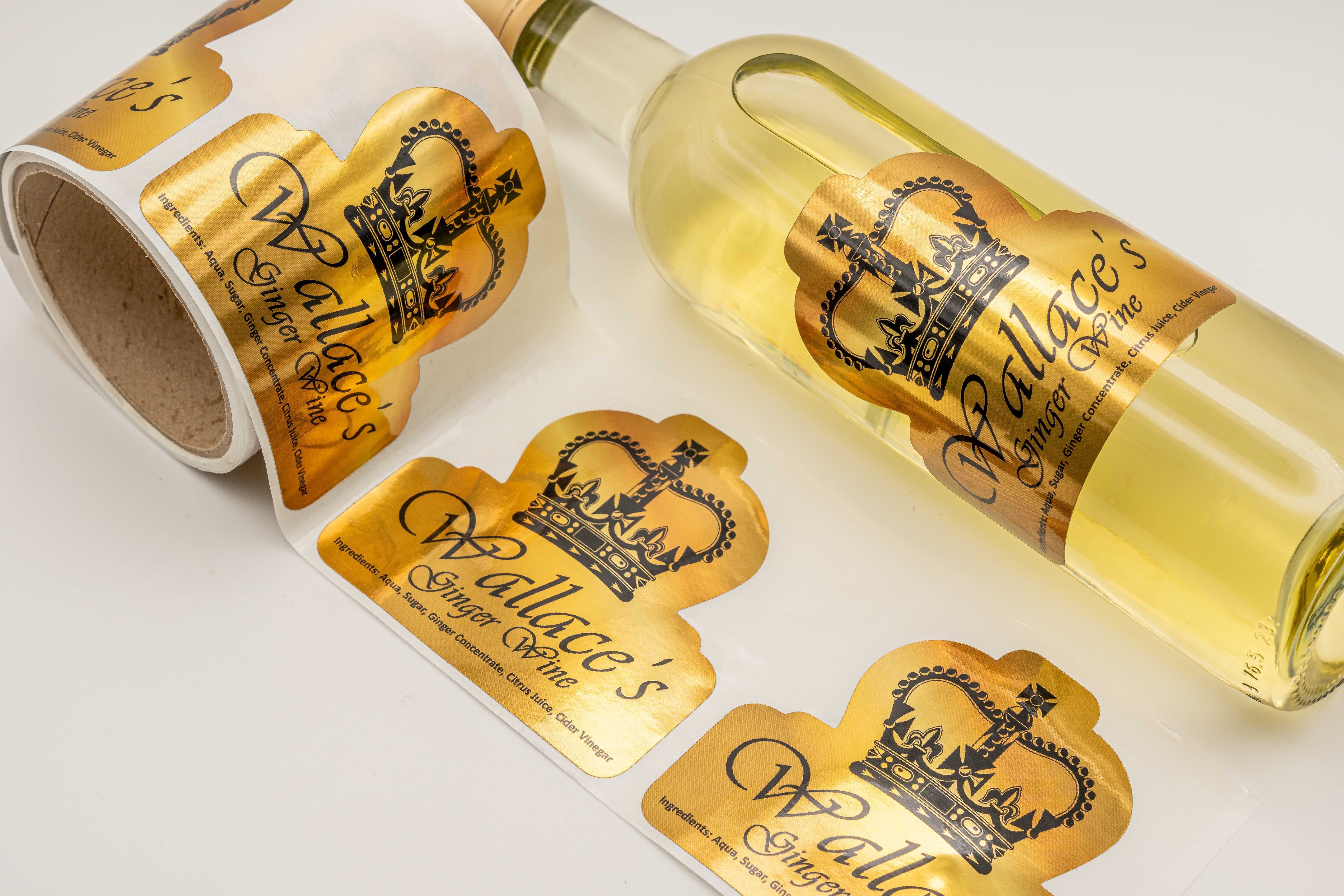

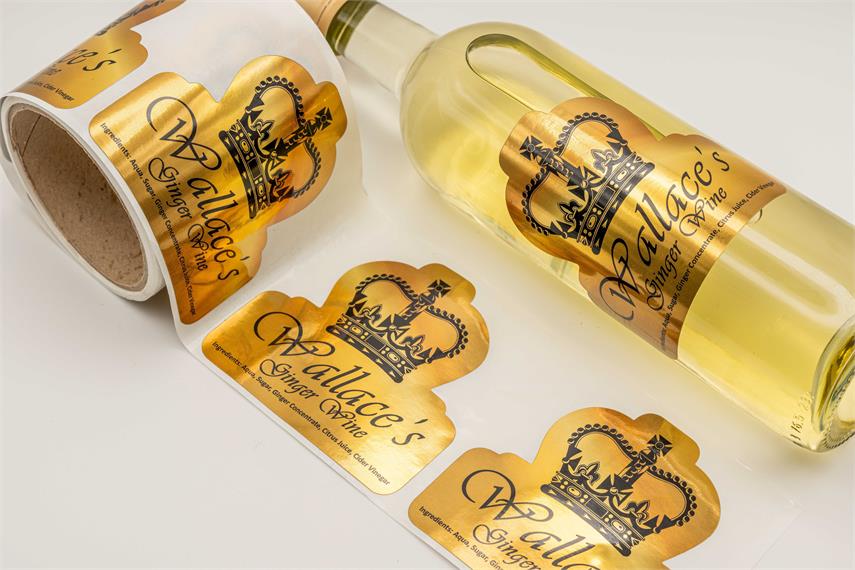

The way we create metallic colours is by using a silver substrate and applying a thin layer of CMYK toner to create the metallic colour required, when ordering please describe the colour required (or give the metallic swatch code from our color logic sheet which is included in all sample packs and can be ordered here FREE of charge) in the notes box at the upload artwork stage.

The parts that you do not require metallic we have to create a white base layer on the artwork, this is achieved by creating a separate layer on your artwork, named “white” and anywhere our press finds this colour it will print white toner beneath the CMYK artwork.

Any white parts on your design that are not named “white” will be printed in a silver metallic.

We can set up your white base for you here in our design studio, please describe which areas you do not require metallic in the notes box on the upload artwork page.

Please be aware that if additional set up is required by our design studio this may delay turnaround time.

For an in-depth guide of how to setup labels with metallic elements please click here

Think about the appearance you are trying to achieve for your label, some materials may darken or lighten the appearance of your artwork once printed.

The different finishes may also affect the way your labels appear, Matt effects will make the colours look a little dull or faded and a gloss finish might make them appear brighter.

For more in-depth information about all of the materials and finishing options we offer click here
